Feelix KIT Documentation

The Feelix KIT is available for ID students at TU/e to borrow and use for educational purposes. Please note that the kit remains the property of the university and must be returned in good condition after use.

Feelix Documentation
Feelix KIT Booklet

Thank you for using the Feelix Kit

This kit was carefully crafted for educational purposes, built with love and care by a small, dedicated team. It is the result of extensive effort by a small, dedicated team who worked tirelessly, with limited financial resources, to hand-build each component.

We hope you enjoy using the kit. However, we kindly ask all users to return the kit in good working condition, so other students can also benefit from the Feelix setup for their projects.

Due to its unique design and the limited funds available, replacing the electronics is extremely challenging. User errors are always possible, and if you're unsure or run into issues contact us with any questions or concerns. We are always available to provide guidance and support.



Feelix KIT Booklet

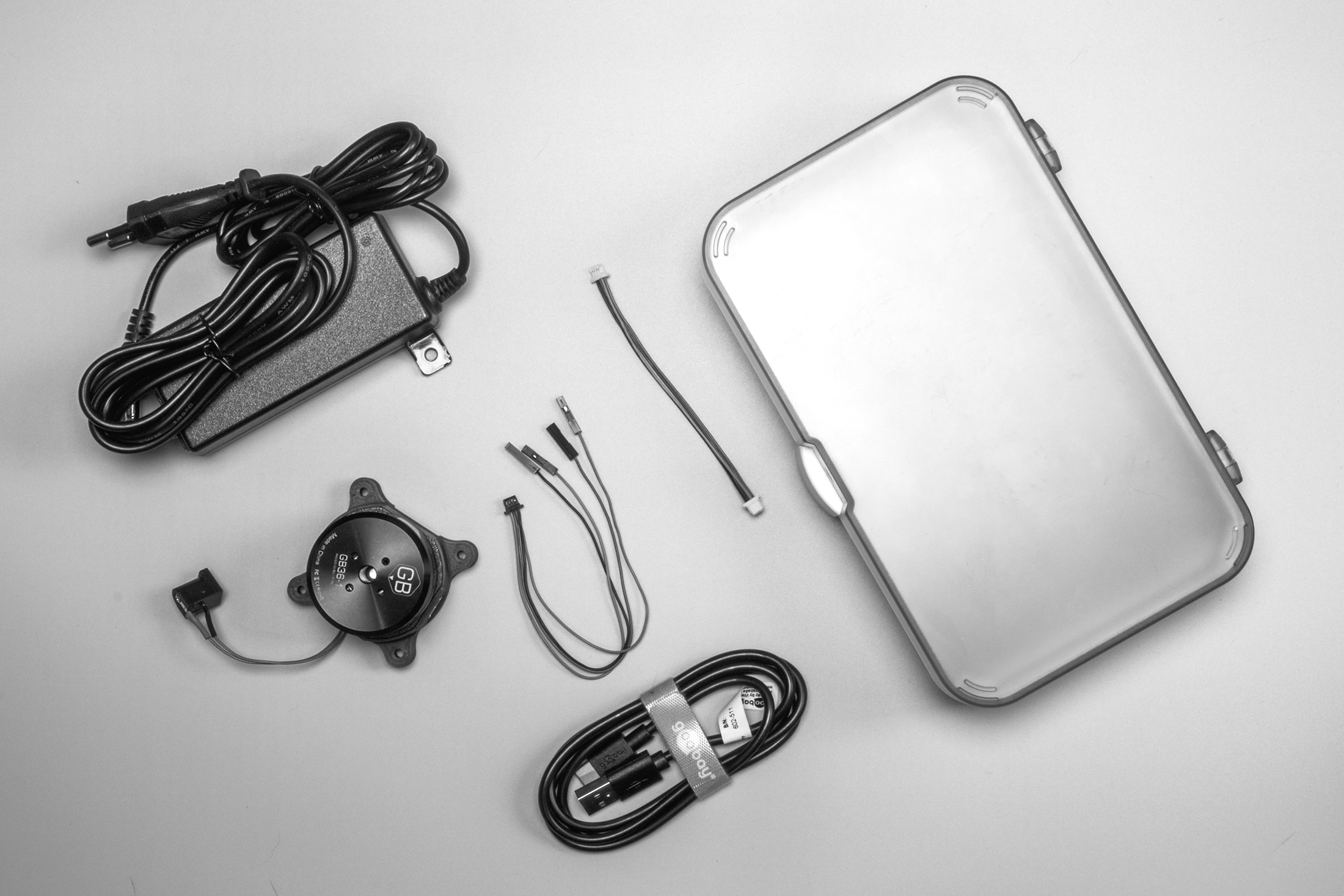

Components

The contents of each kit may vary. When returning the kit, ensure that all original components are included. If any items are missing, please order replacement parts before returning the kit if possible.

    Setup

    Feelix and Feelink both use 3v3 logic.
    Make sure your I2C and SPI connection operate at 3v3.

      Pinout

      Feelix and Feelink both use 3v3 logic.
      Make sure your I2C and SPI connection operate at 3v3.
